Network Paths & Dependencies

Use STRATUMOPS path analysis to follow how systems depend on one another across network relationships instead of reading the topology as isolated nodes.

STRATUMOPS

Trace dependencies across the network

Network path analysis follows the relationships between systems and network objects so an operator can see the modeled path involved in a service or connectivity problem.

Use the path view together with Mission Planner topology and packet capture when you need both dependency context and observed traffic.

INTERFACE

Interface tour

REFERENCE 01

STRATUMOPS Network Path Analysis

Open network path analysis for the systems involved in the question and follow the modeled dependencies across the relevant network objects.

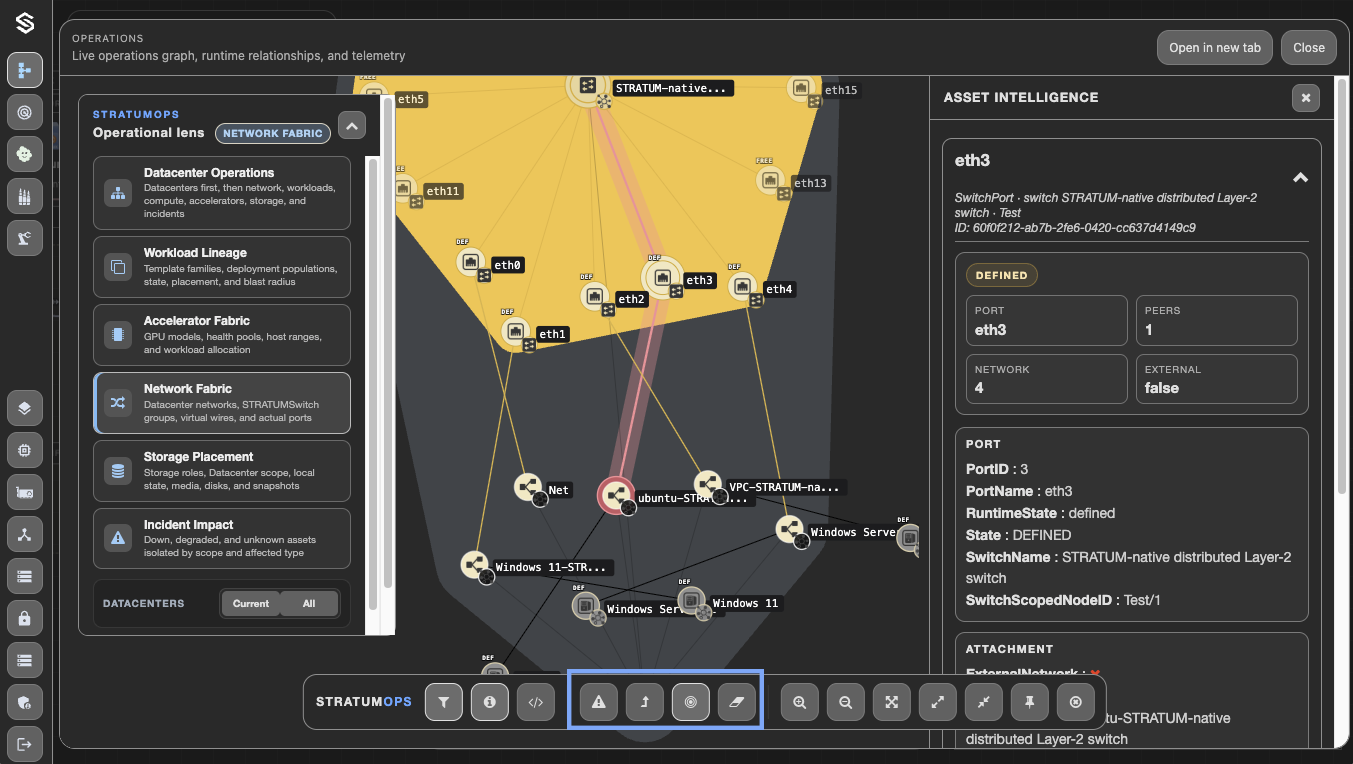

FIGURE 01STRATUMOPS Network Path Analysis
RESULT

The outcome you should see

You can trace the relevant network dependency path and use it alongside packet capture or Mission Planner topology when diagnosing connectivity.
